Voyetra Eight Mixer Card

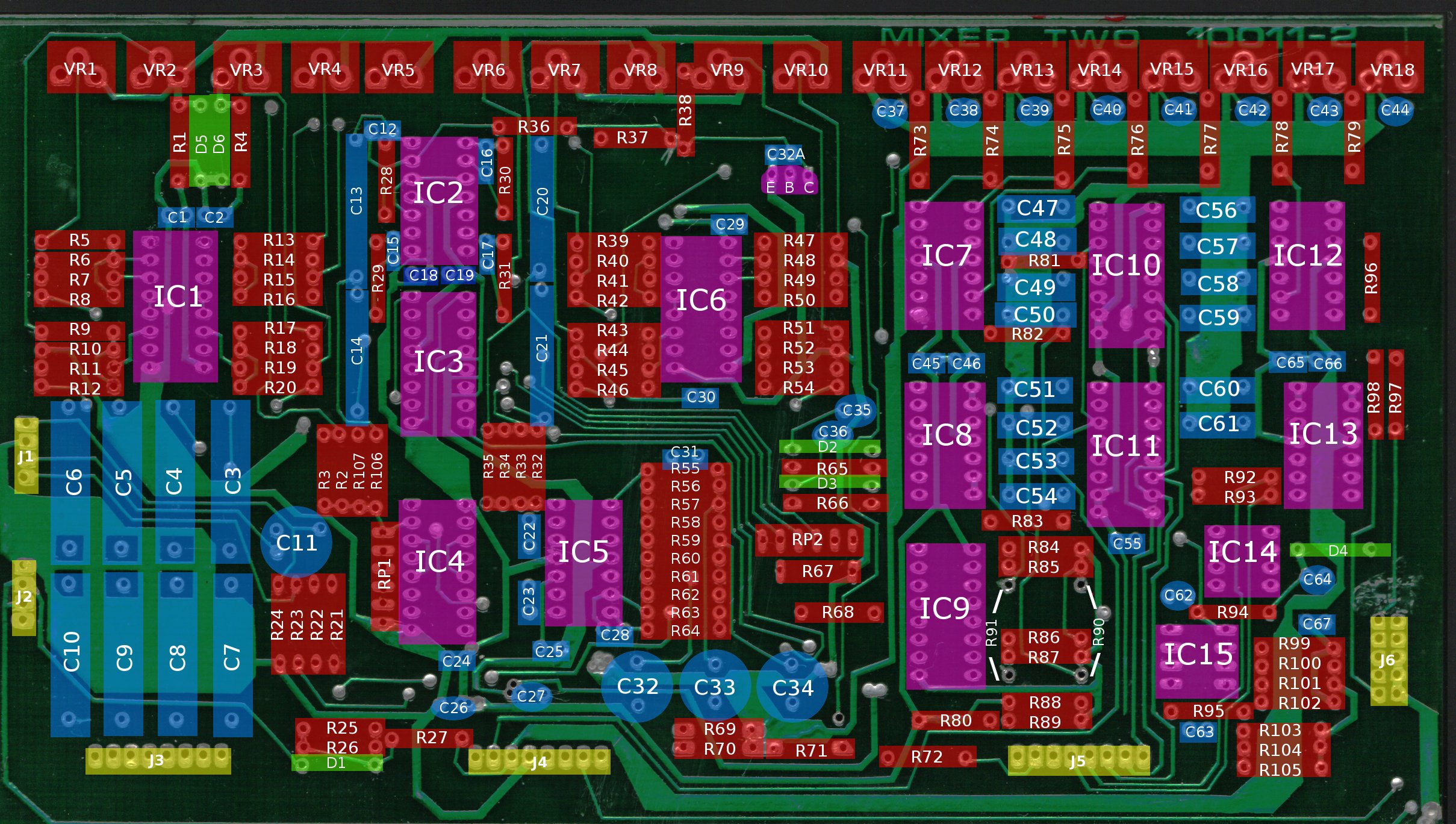

Board with Reference Designators

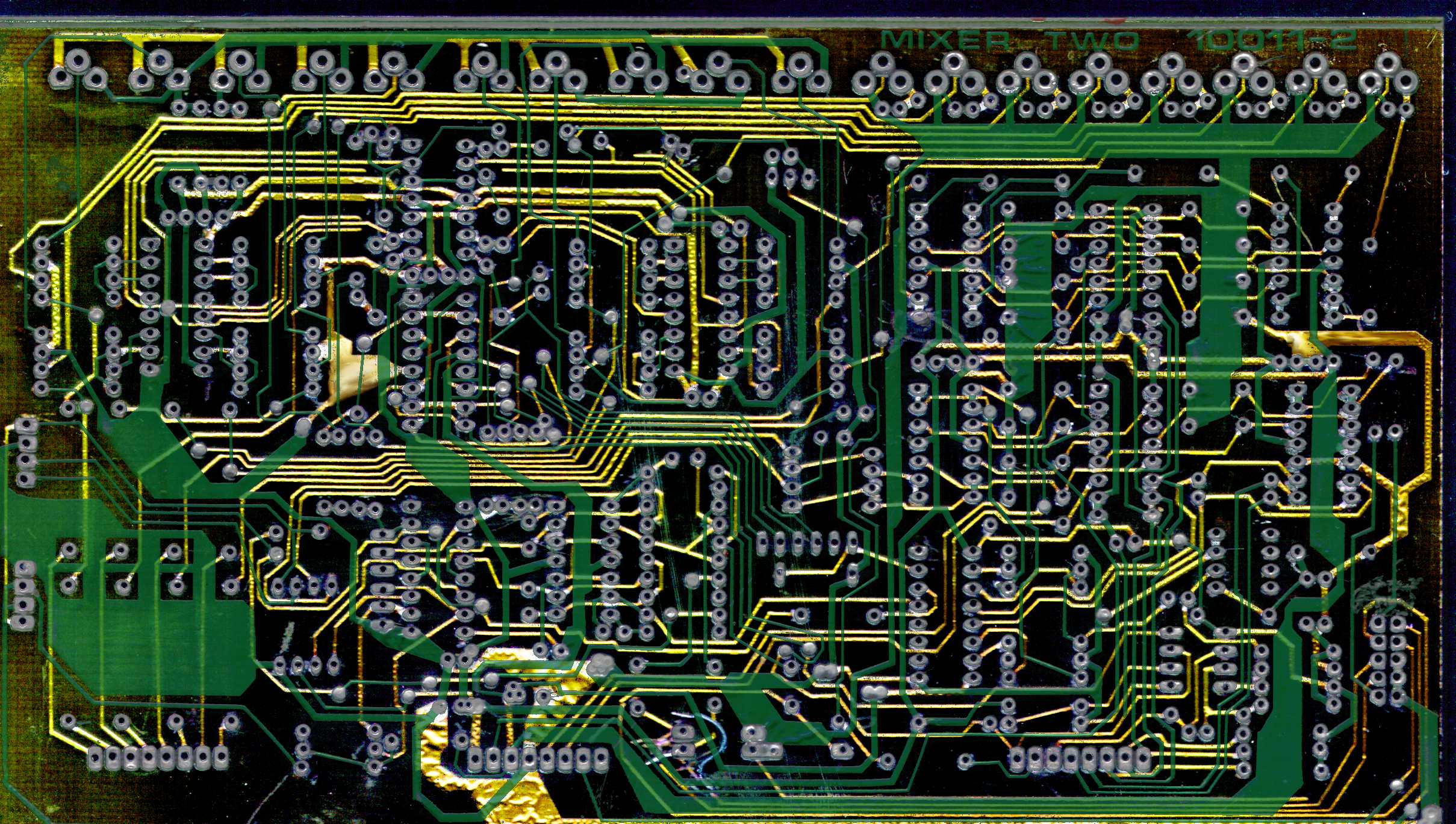

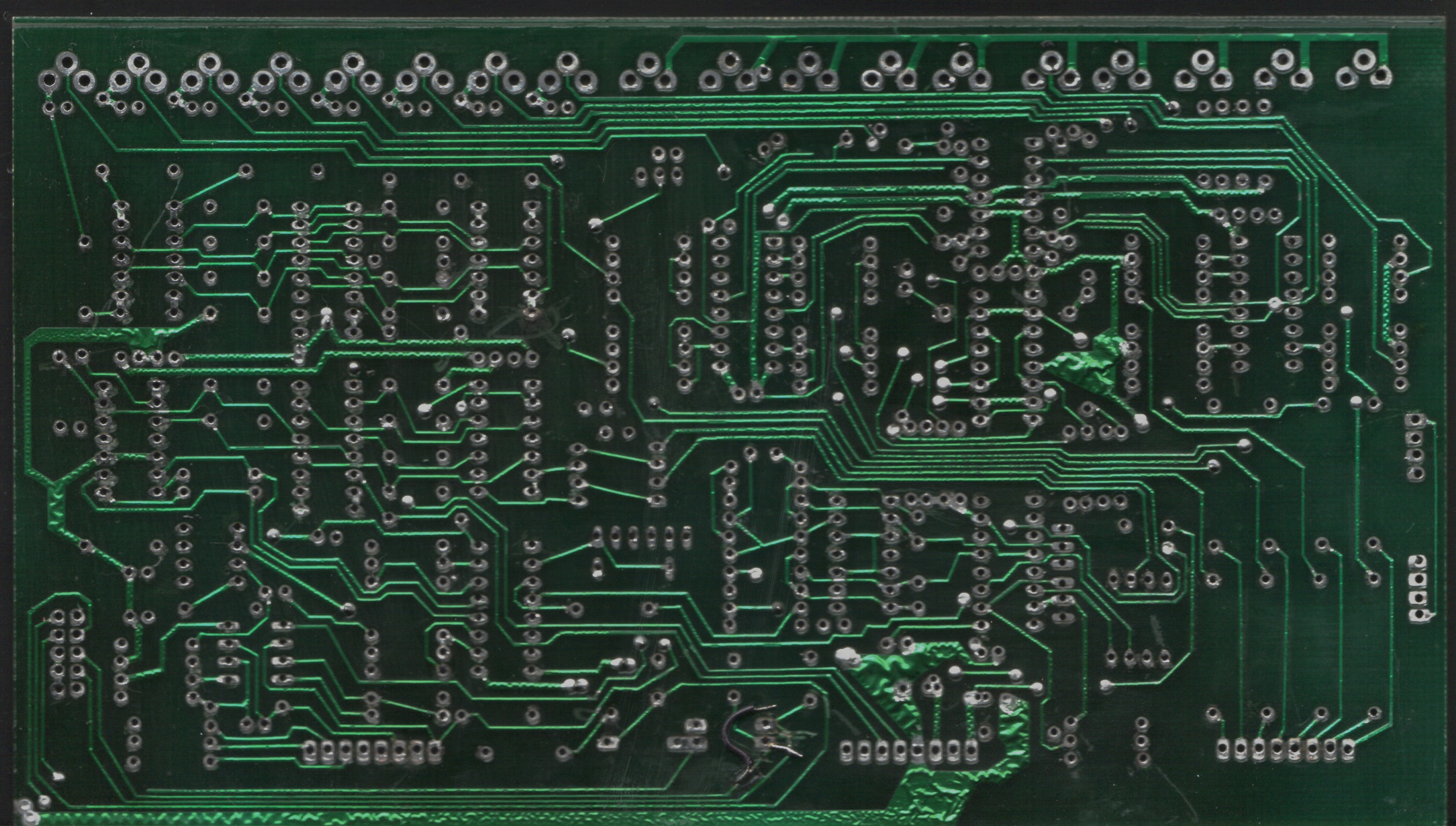

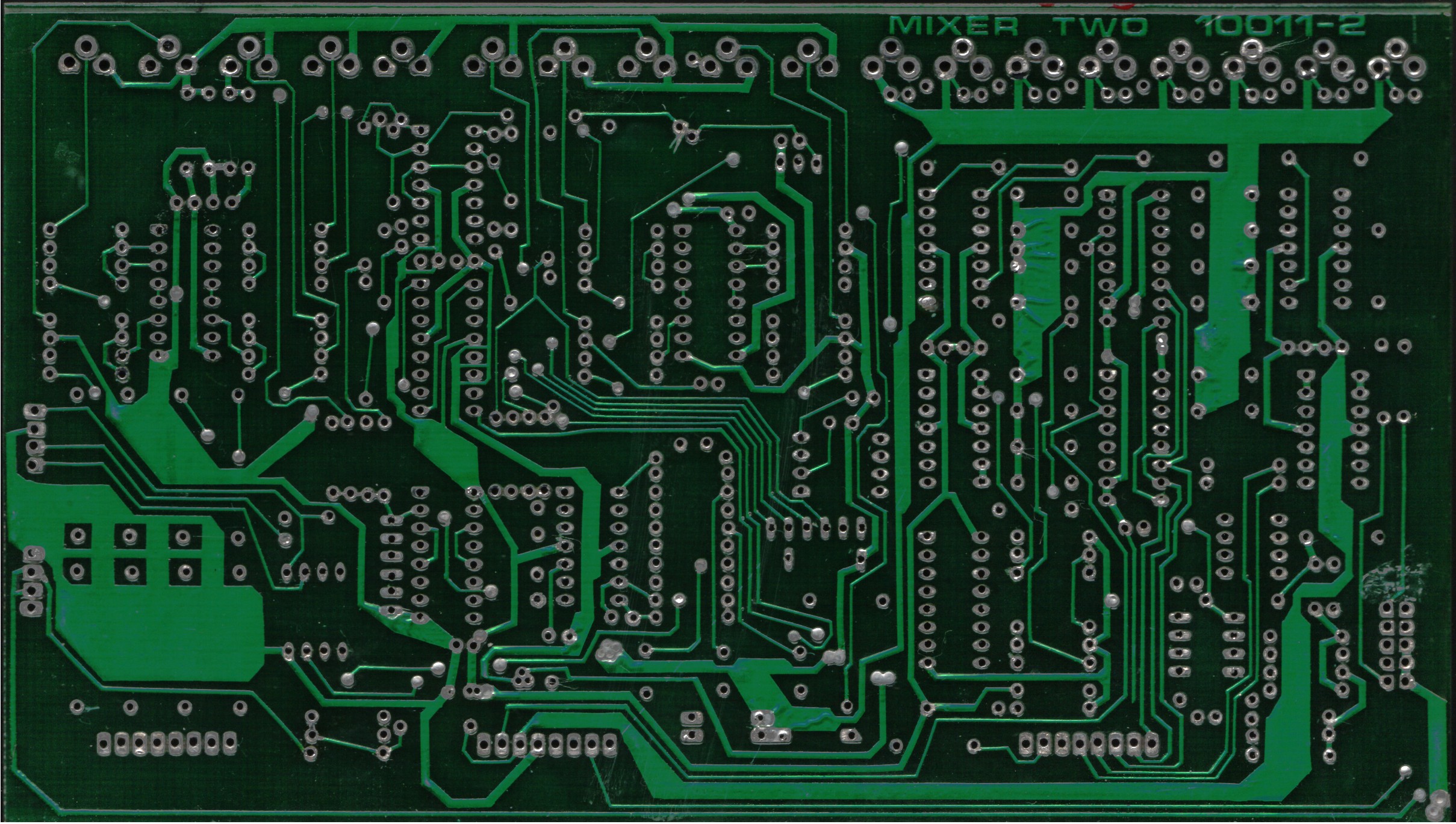

[ Component Side | Solder Side | Dual Layer | All layers (Gimp XCF format) ]

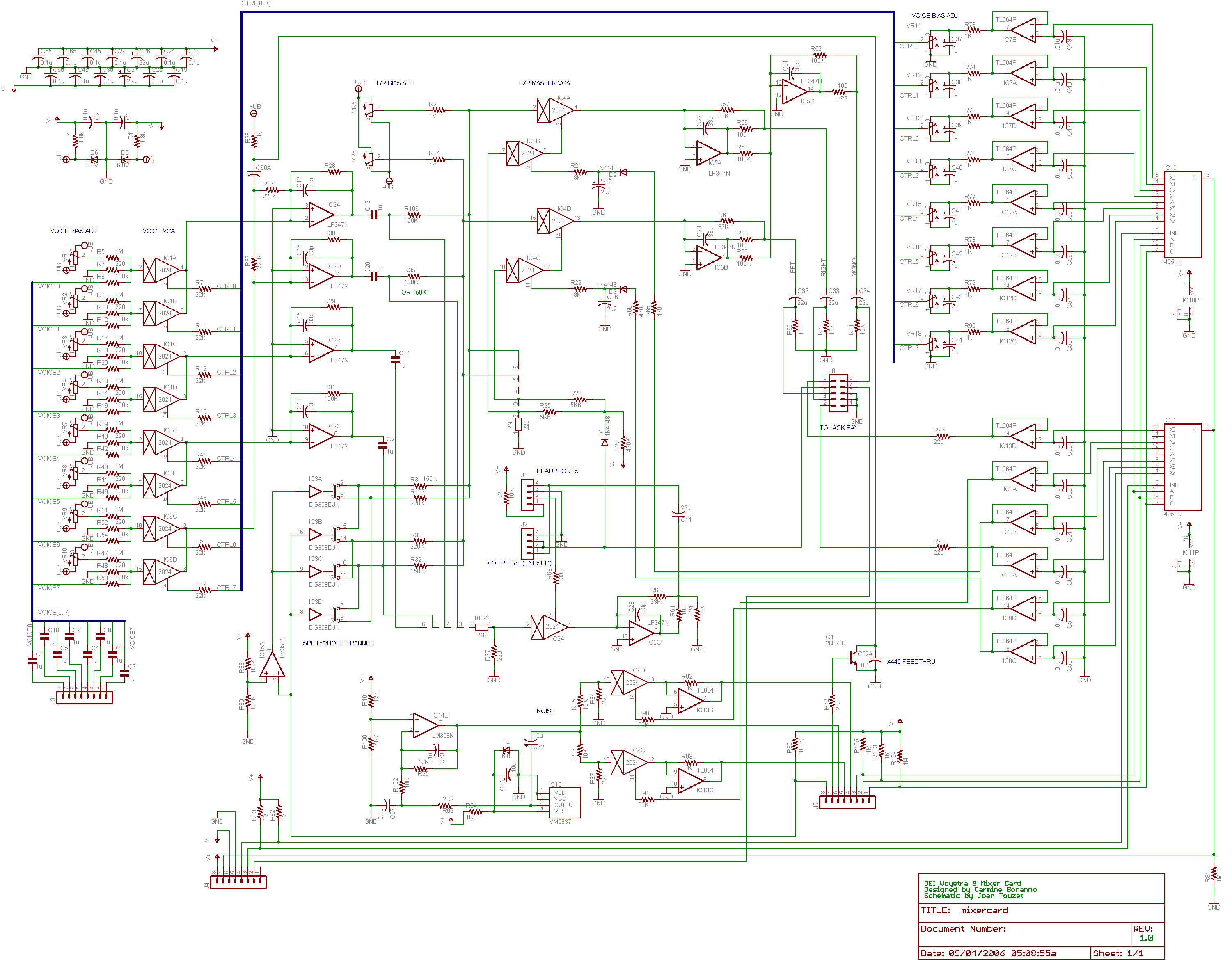

Schematic (3002x2340)

v1.0, last modified: [an error occurred while processing the directive]

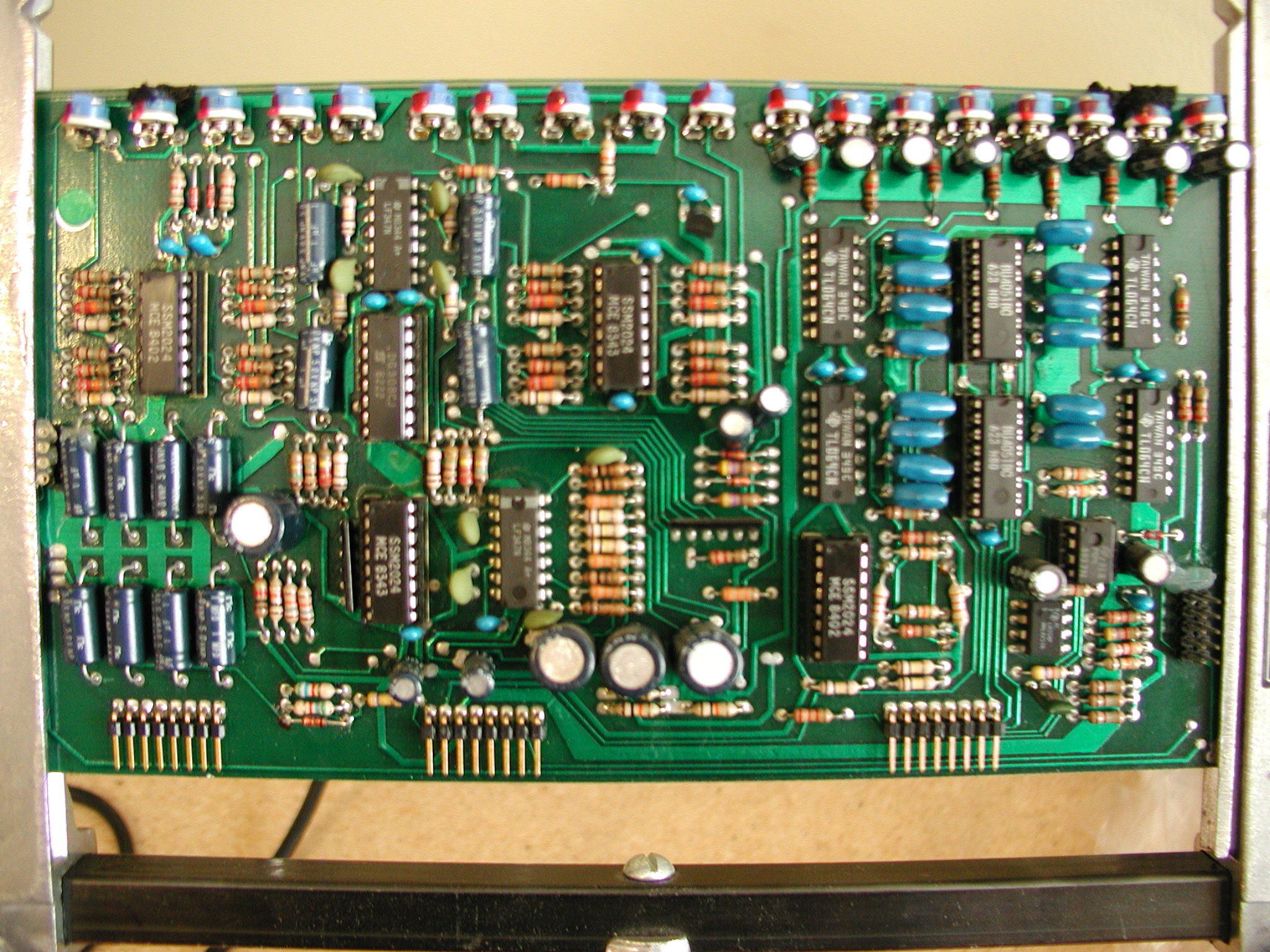

Before disassembly

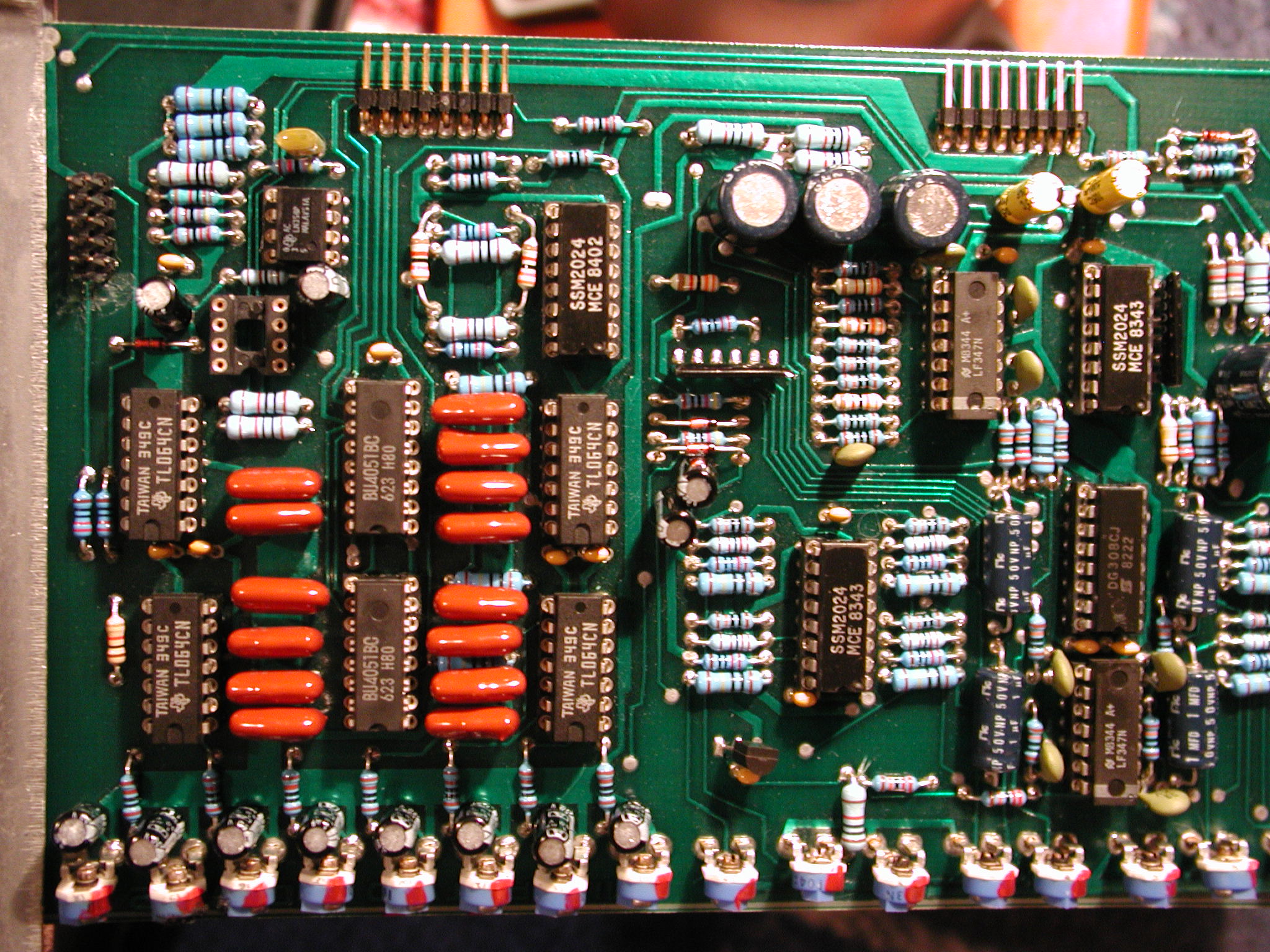

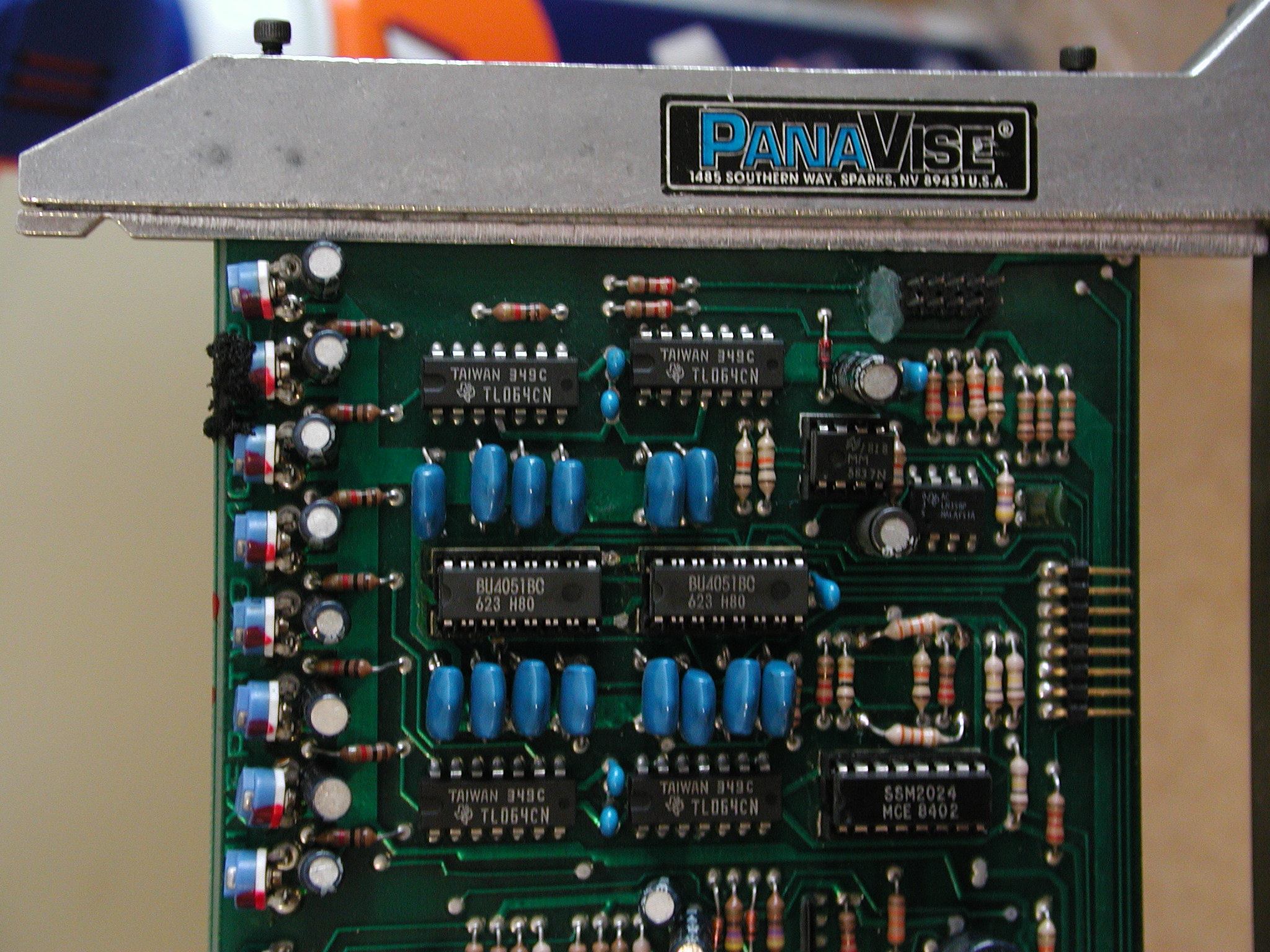

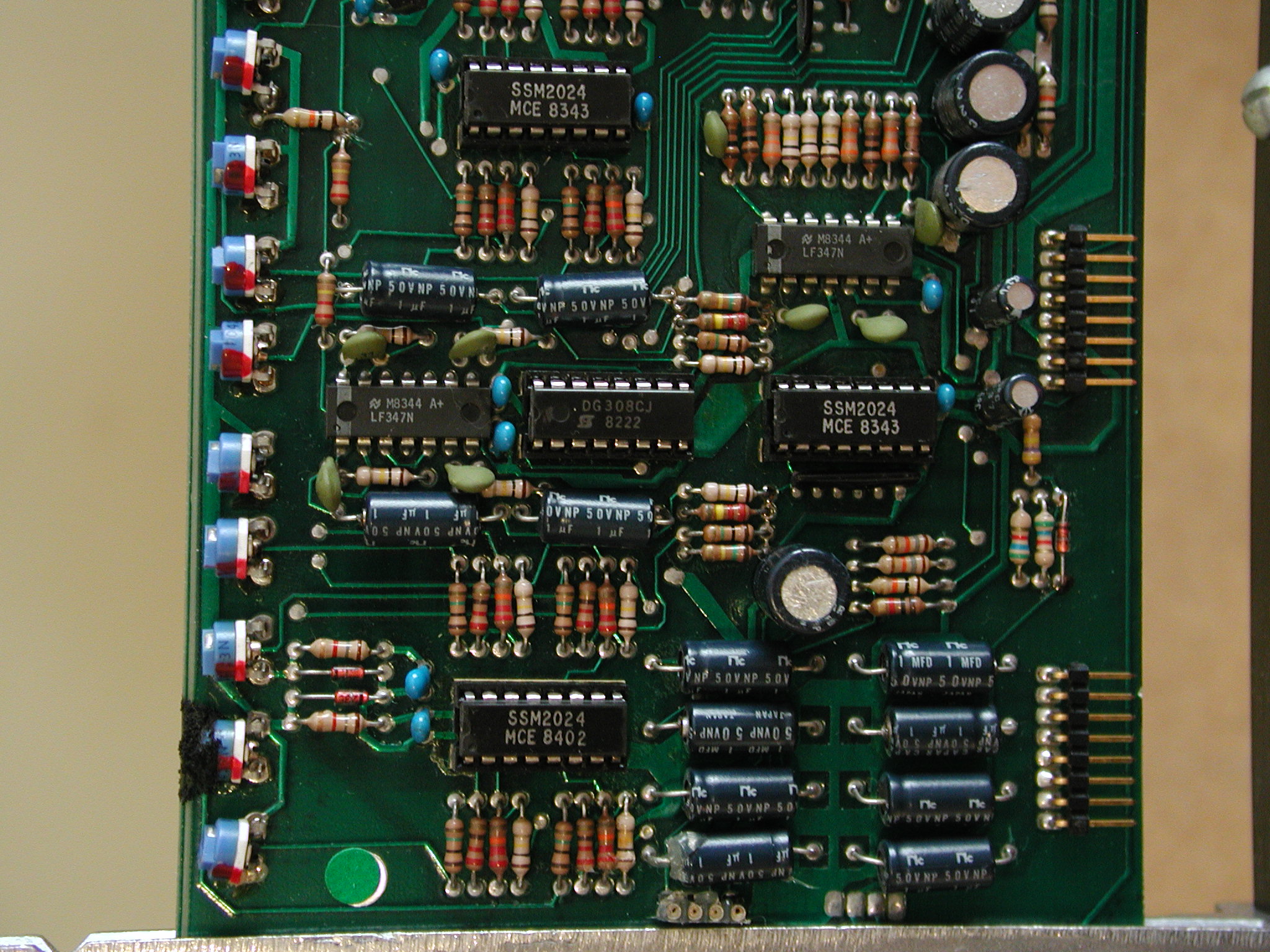

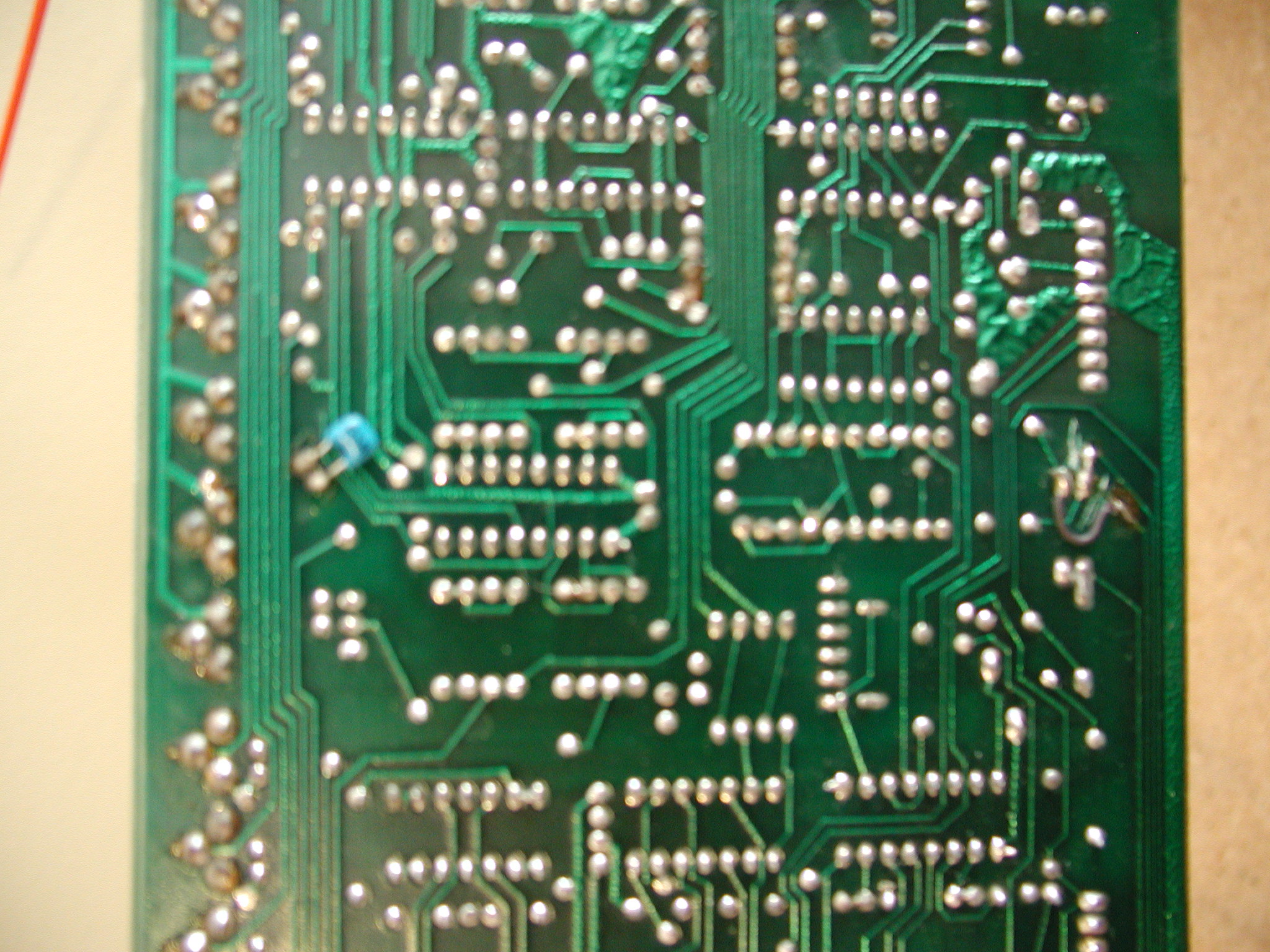

[ Closeup 1 | Closeup 2 | Closeup 3 | Solder-side ECOs ]

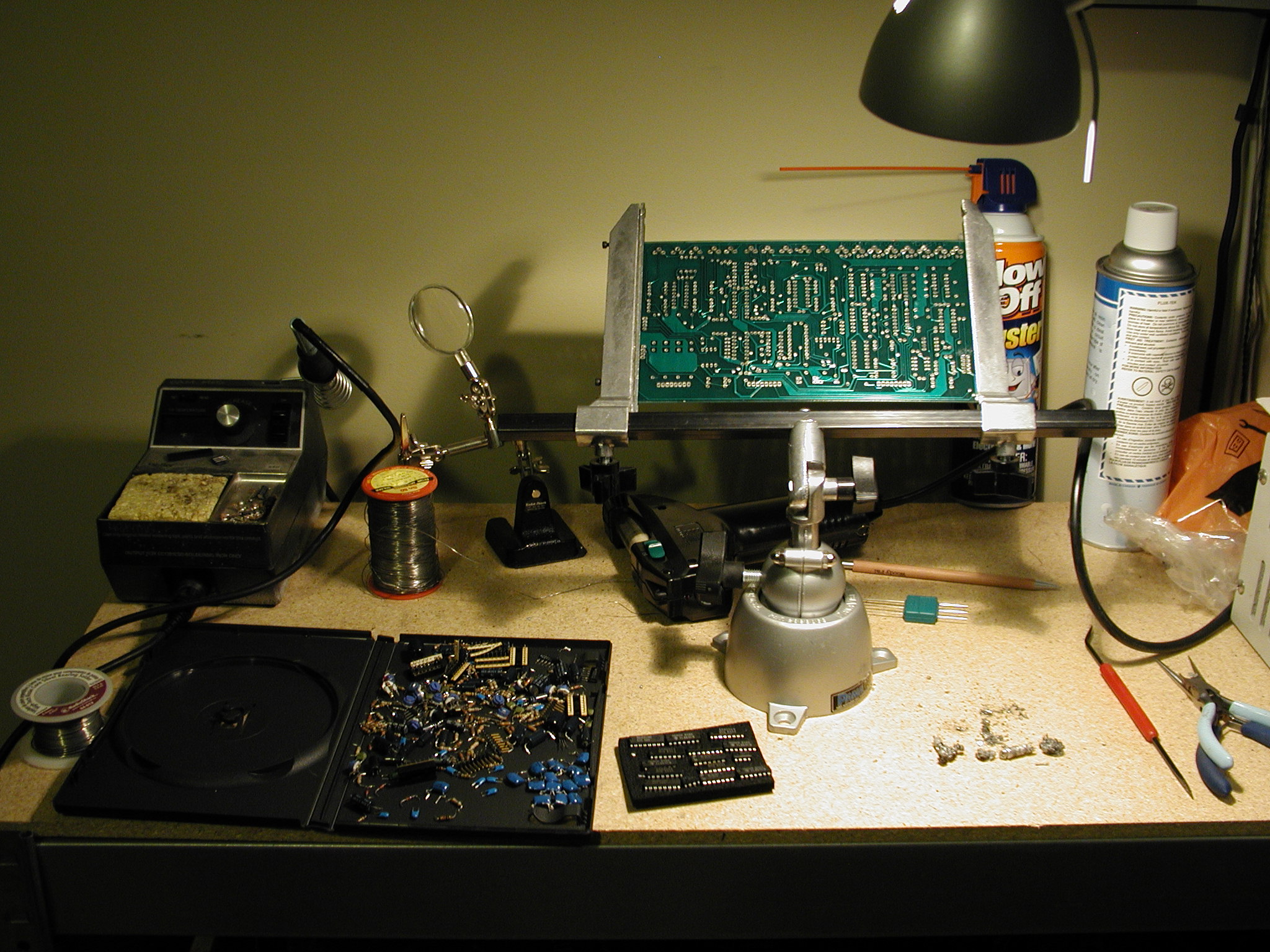

During disassembly

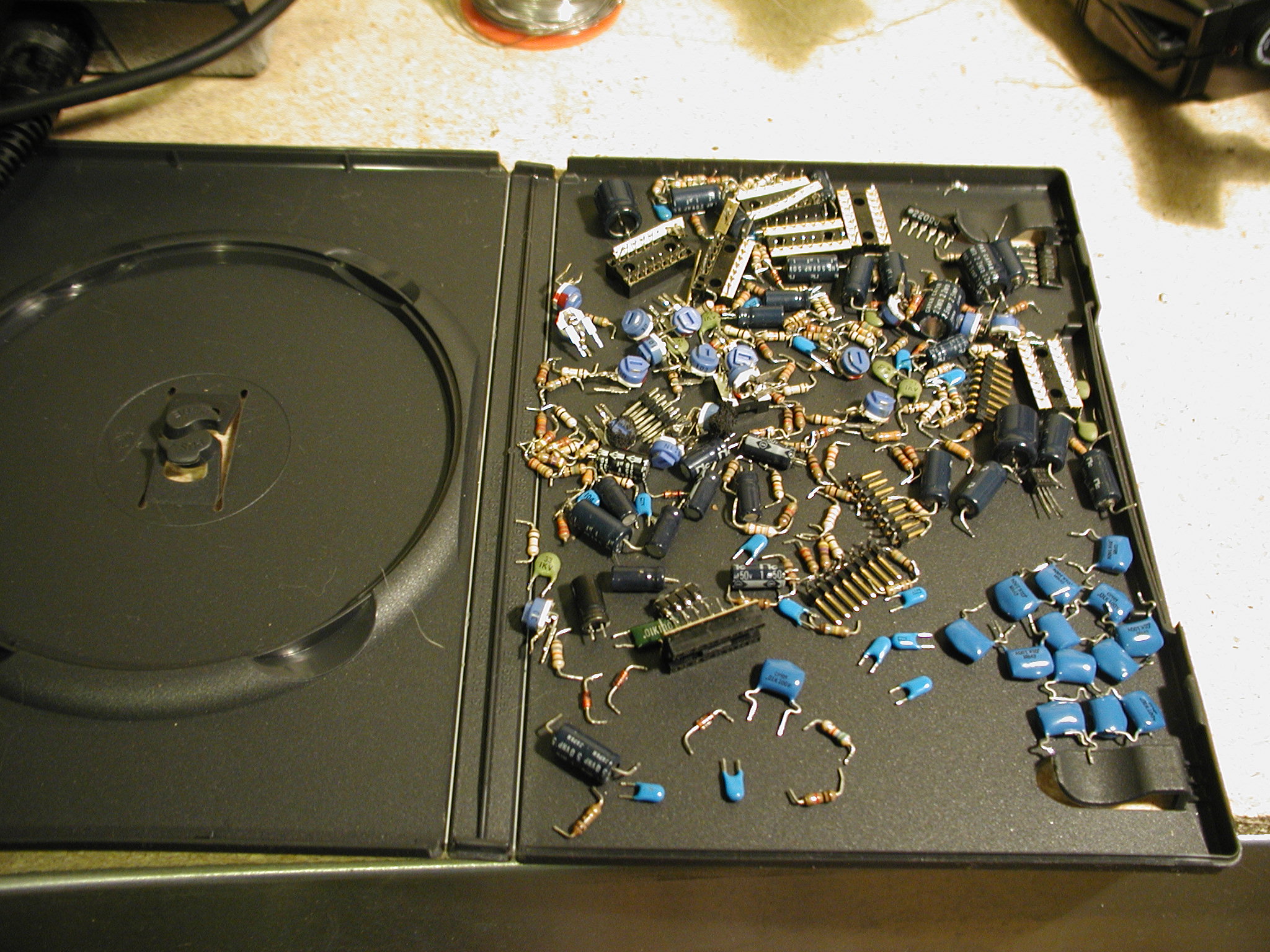

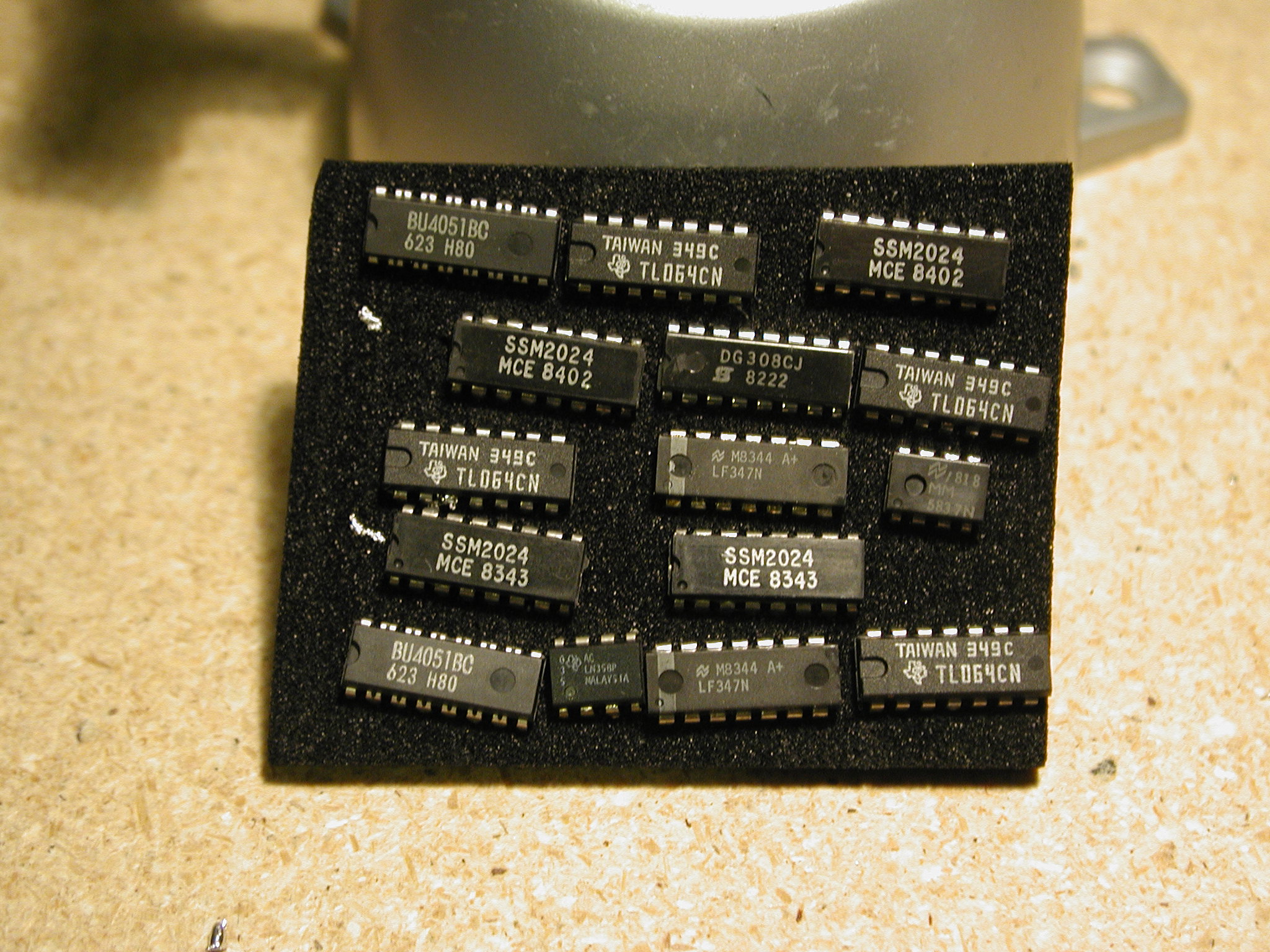

[ Removed ICs | Removed components | Removed solder ]

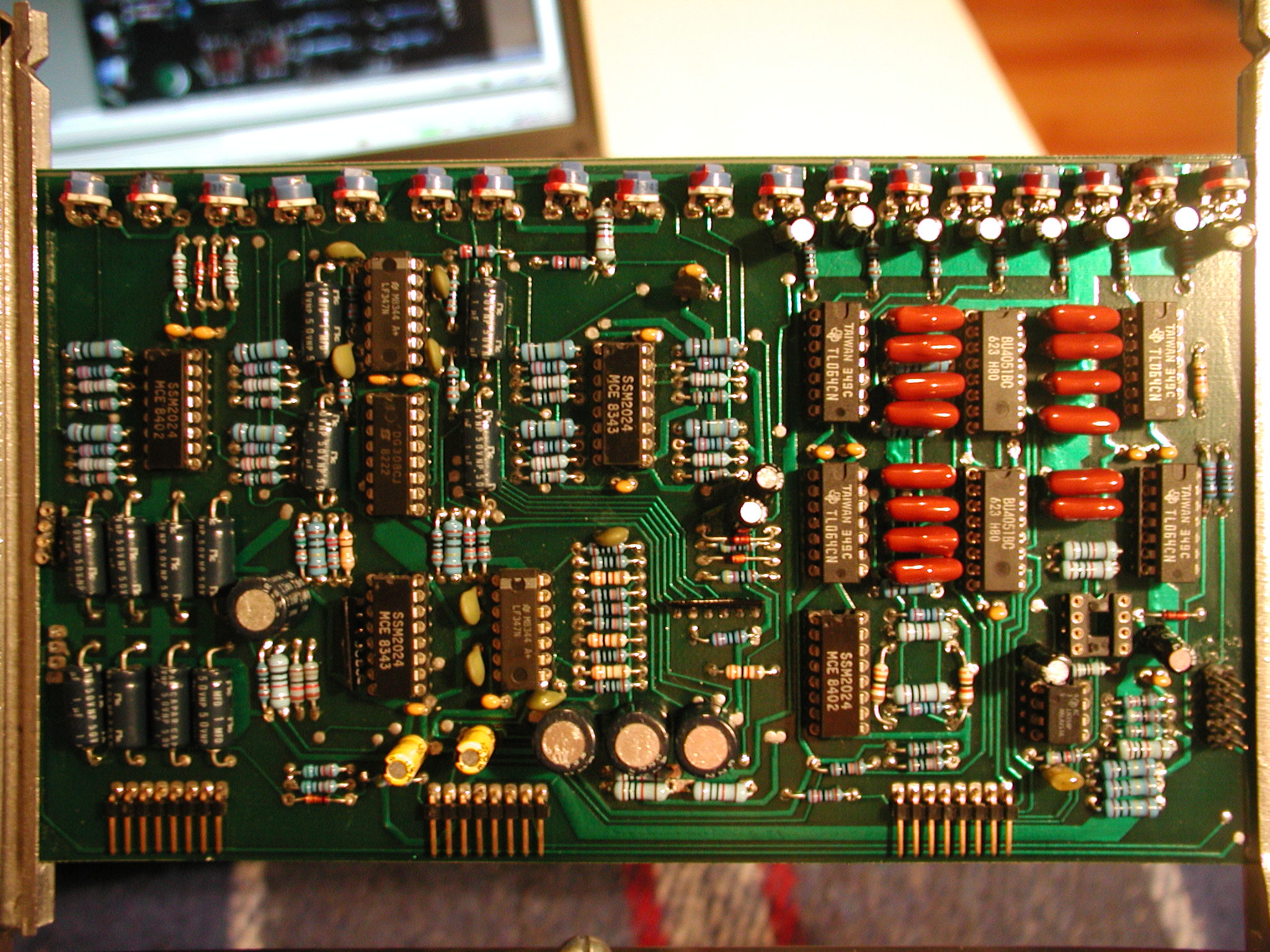

After rebuild/reassembly

[ Closeup 1 | Closeup 2 ]
